This article will cover placing a design and all the tools that will help you move and adjust it on the property.
Before placing your design, it is essential to align the property boundaries and adjust any existing structures to accurately reflect the satellite imagery.
- To access the Design Catalogue click the Choose Design button.
- Use the Search, Sort or Filter options to help find your design.
- The Brain icon is exclusive to filtering House designs.
The Brain icon will filter out any designs that exceed the shortest boundary width & length.

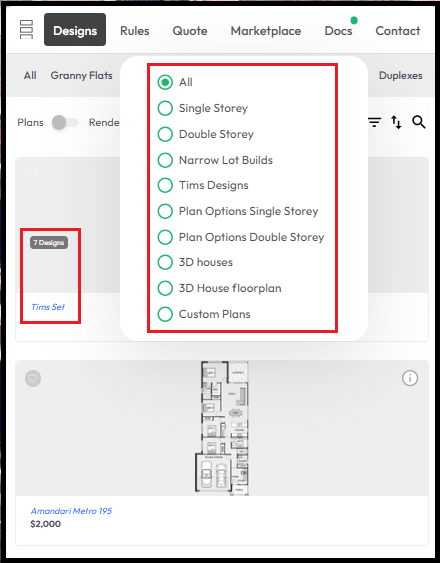

- Alternatively you can filter by Subcategories or Design Sets
- Left click on the design and it will load up onto the property.
There are various tools that can be used to move and position the design. Toggle snap can be used to snap the design square to the boundary. Once square turn off the feature to avoid it snapping to another boundary.
- Click & hold the design drag the design to move it around.
- Use Toggle Snap to square the design to the boundary.

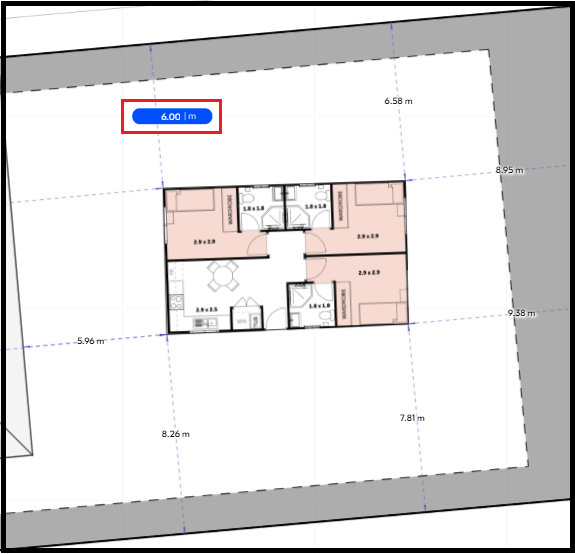

- Click on any of the dimensions to edit the distance.
- Type the new distance & press enter on your keyboard.
 |
Rotate - Click & hold to rotate the design 360 degrees in any direction. |
 |
Delete Structure - Removes the design from the property. |
 |
Add Annotation - Creates a note bubble that can be positioned anywhere on the site. |
 |
Elevation - Toggles the elevation points on the 4 outer most corners of the build. |
 |
Flip - Mirrors the design. |
 |
Resize - Check if the design is scaled correctly. |
- Left click on a design to bring up 5 additional design management options.
