This article will show you how to use polygon tool allows you to create a range of shapes tailored to your needs. By utilizing the toggle snap feature, you can easily achieve angles of 90 degrees, enhancing the accuracy of your designs.

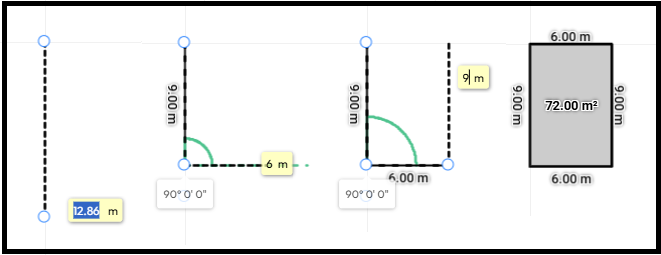

Enter Method
- Select the Draw Curve Polygon / Polygon tool.
- Select the Toggle Snap feature.
- Click anywhere on the screen to start.
- Drag the line vertically down and let go of the mouse
-
Press enter / return on the keyboard and type the dimension of the Line.
-
Press enter / return to lock in the dimension.
-
Press Esc to remove the previous point.
-
Repeat on each line as necessary to complete 4 side of the square or rectangle.
-
To terminate click on the starting point.

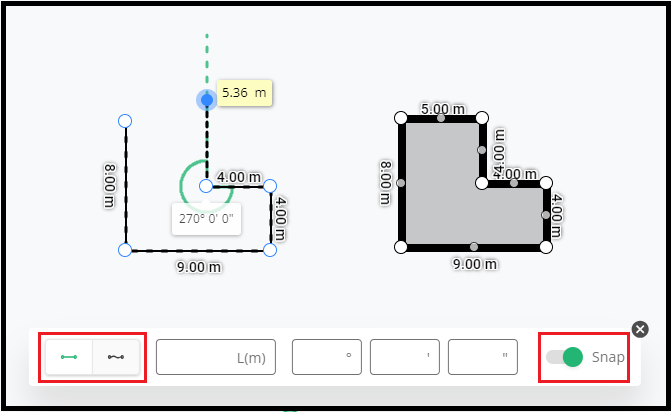

Action Box
-
Select the Draw Curve Polygon / Polygon tool.
-
Click anywhere on the screen to start.
-
Use the Action Box to alternate between straight / curve lines.
-
Toggle to activate the snap feature.
-
Press enter / return on the keyboard and type the dimension of the Line.
-
Press enter / return to lock in the dimension.
-
Press Esc to remove the previous point.
-
Repeat on each line as necessary.
-
To terminate click on the starting point.
Edit the display of a Polygon by adjusting the setting after drawing or selecting it. This is useful to declutter the screen, to define or clearly identify the shape visually or achieve a desired outcome for the site plan.
