This article will guide you through the process of adjusting and interacting with a Design after it has been placed on the site.
There are various tools that can be used to move and position the design.
Move the Design
- Click & hold the Design, then drag to move it around the property.

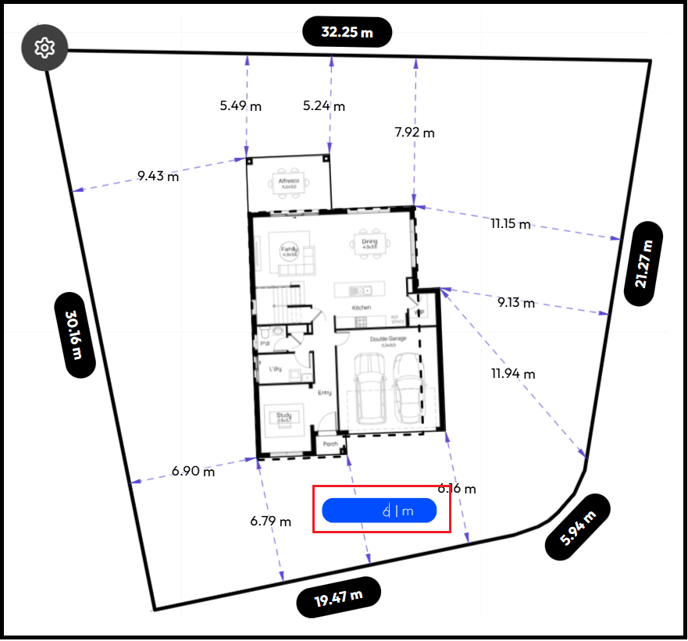

- Click on any of the dimensions to edit the distance.
- Enter the new distance & press Enter on your keyboard.

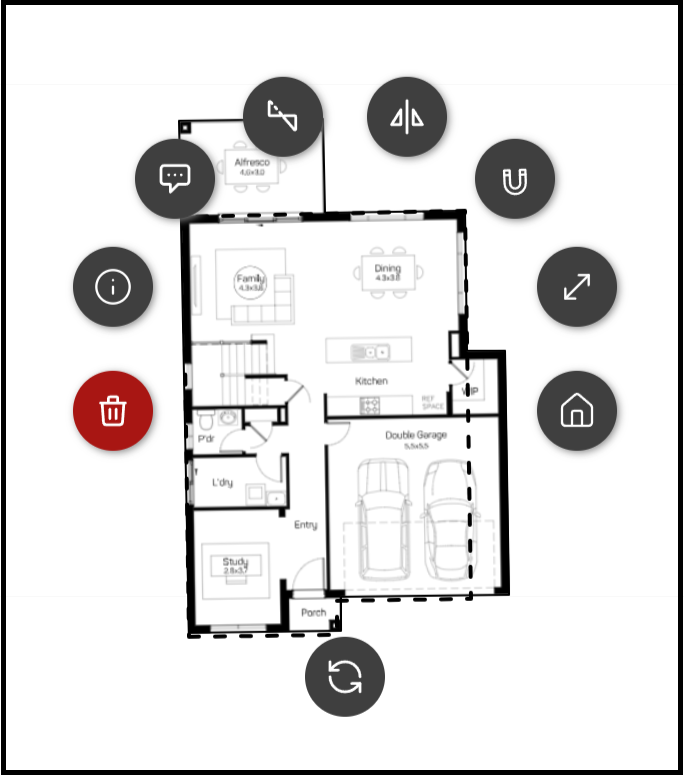

- Left click on the proposed build to access the Design Menu.
 |
Delete Structure - Removes the design from the property. |
 |
Info - View all of the Design details in the left panel. |
 |
Add Annotation - Creates a note bubble that can be positioned anywhere on the site. |
 |
Elevation - Toggles the ground levels & displays height changes at the four outer corners of the build. |
 |
Flip - Mirrors the design. |
 |
Snap - Easily align any design with a boundary. |
 |
Resize - Check if the design is scaled correctly. |
 |
Floor - Cycle between Ground & First Floor. |
 |
Rotate - Click & hold to turn the design 360 degrees in any direction. |

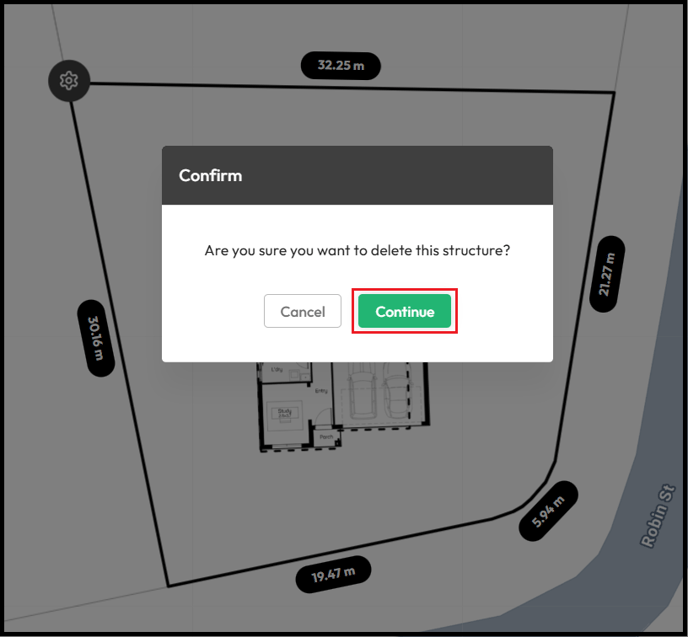

Delete Structure
- Click Continue to remove.
- Click Cancel to keep.

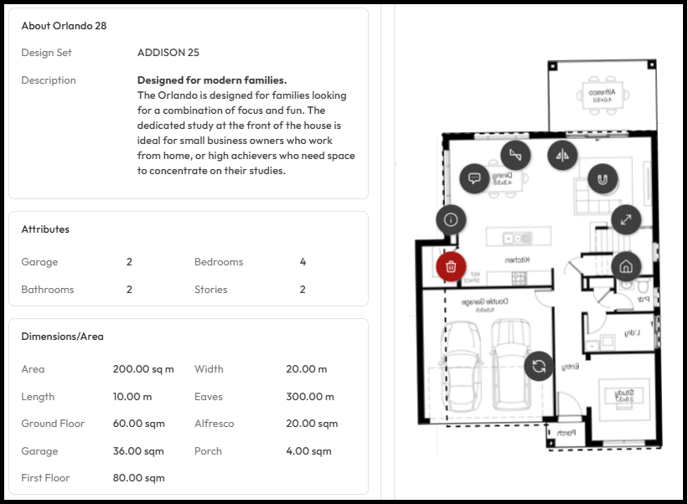

Info
Easily view all details & attributes of the design.

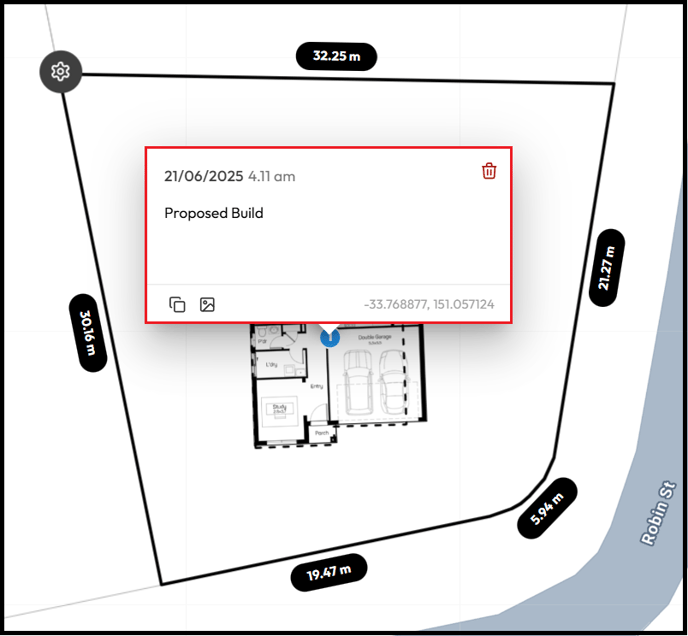

Add Annotation
-
Drag your mouse to the desired location.
-
Left-click to place the annotation.
-
Add text & images as needed.
Elevation
View the change in height across all corners of the design.

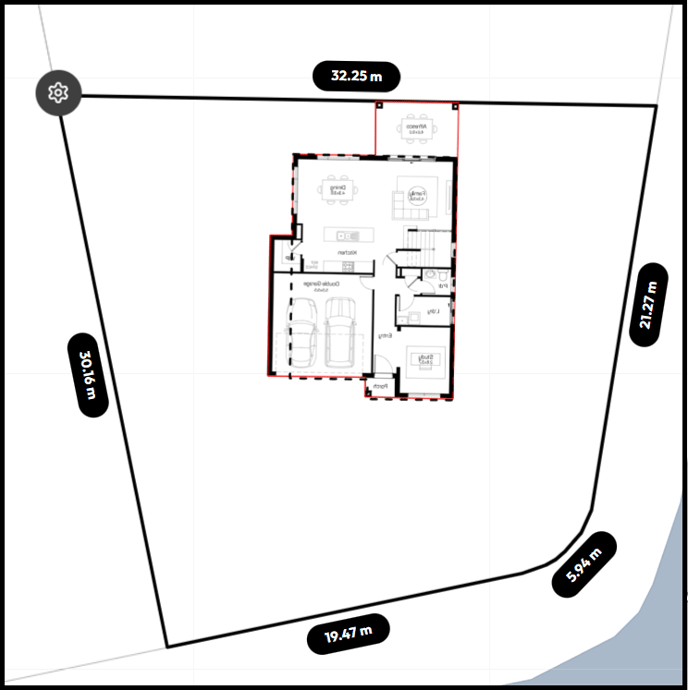

Flip
Mirror the design to suit the slope or shape of the property.
Snap
- Activate the Snap feature.
- Drag the design to a boundary for it to align.
Resize
- Click & Hold the Green Arrow to increase or decrease the size.
Floor
- Click the House Icon to view the First Floor.
Rotate
- Left click & hold on the Rotate button.
- Move your mouse to adjust the rotation.
