This article will cover how to find & interpret property compliance for any build type & edit the setbacks if necessary.
There are different Rule Sets that can be applied to each site depending on its location or Build Type.
- In the US, the main rule set for compliance is USA Country.
- NZ uses local rule sets based on the region.
- AU has state rules available for every site. Estate-specific or local rules can be added on request if they are not already loaded.
- Place a Design on the site for the complete list of rules for compliance.
- The Setbacks display as a grey perimeter around the parcel.

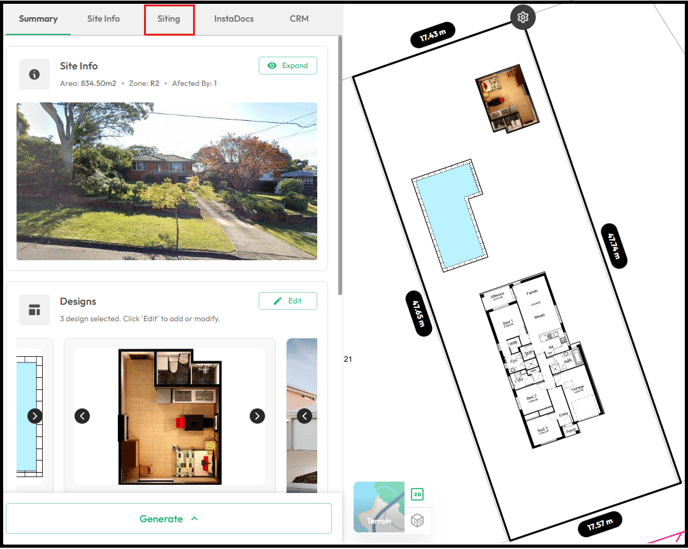

- Click Siting

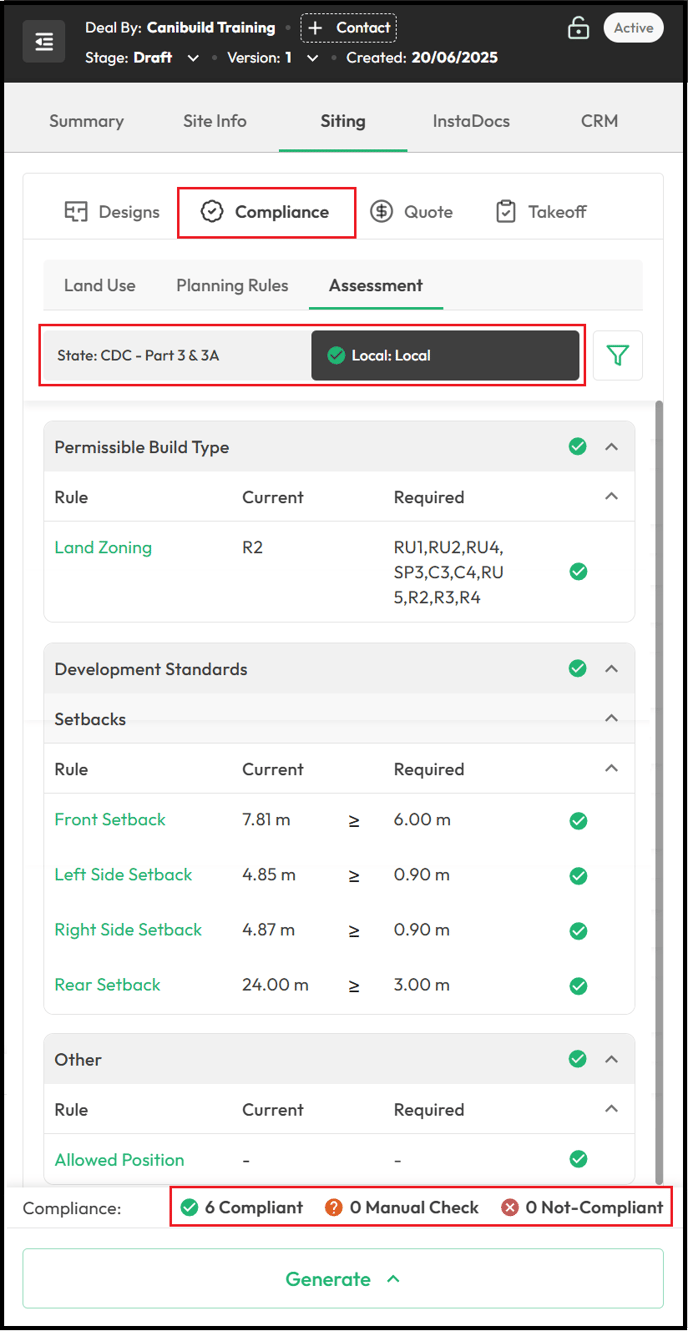

- Select Compliance to view the full list of property rules.
- Click Rule Sets to swap between options, if available.
- Green ticks indicate the current build is compliant.
- Key rules to check include Land Zoning & Setbacks.

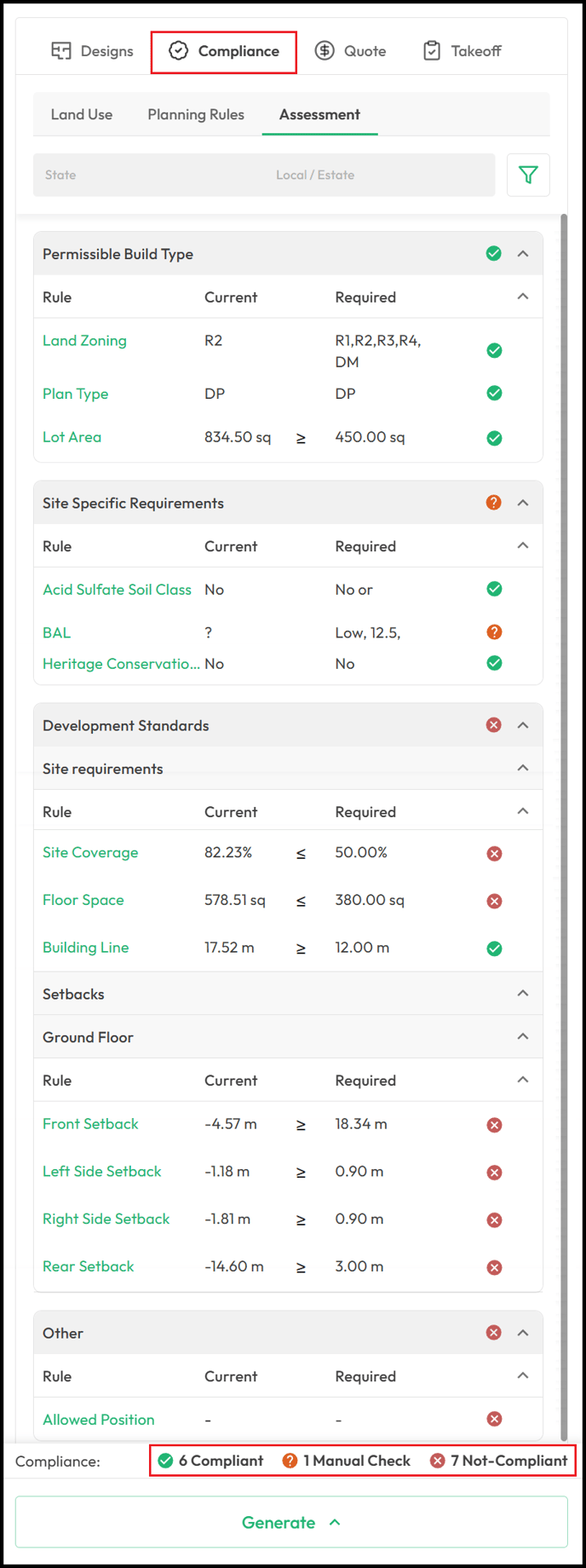

- Breaching a rule or setback will result in a Red X.
- Placing a design over an existing structure or breaching a setback will also trigger a Red X.
- A red X doesn't always mean the build is non-compliant — always double-check.
- Example: A zero lot boundary on a garage may be flagged as non compliant.

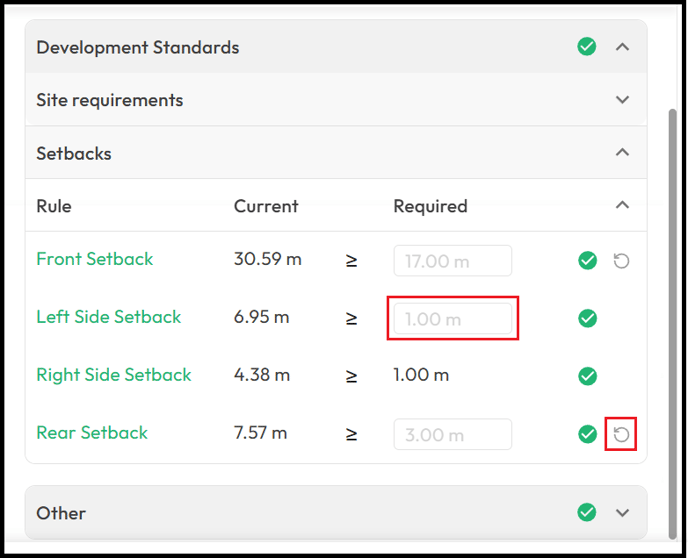

- Click the Required Number to edit the Setbacks.
- Click the Circular Arrow to reset.
All Setbacks are in Metres for ANZ & Feet for US.
Setbacks can be edited if required; however, it is recommended that changes are only made if you are familiar with the official setback requirements for the selected build type.
A common reason for adjusting setbacks may include applying specific rules associated with a new Land Estate.
