This article offers a step-by-step guide on how to access, identify, or interchange the labels for the front, side, and rear boundary segments it will also show how to swap the primary frontage on a corner lot.
Modifying the boundary setbacks can be beneficial in various scenarios, such as when you wish to change the primary frontage, when the segments are not clearly defined, or when the setbacks do not appear while placing a design.
![]() |
Boundary Wrench - Access and mange various aspect of the boundary. |
![]() |
Edit Boundary - Swap the Primary boundary on corner lots & edit the displayed boundary dimension. |
![]() |
Edit Segment Type - Identify or swap the front side & rear segments. |
- Click the Wrench / Spanner on the boundary.

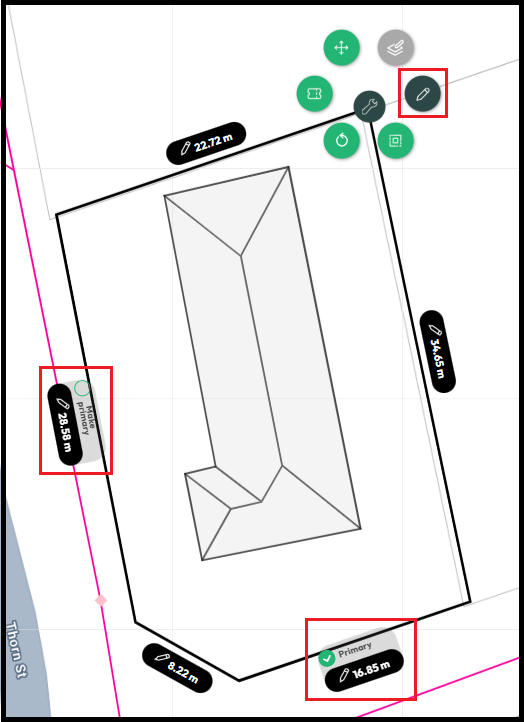

- Select Edit.
- Click Make Primary.

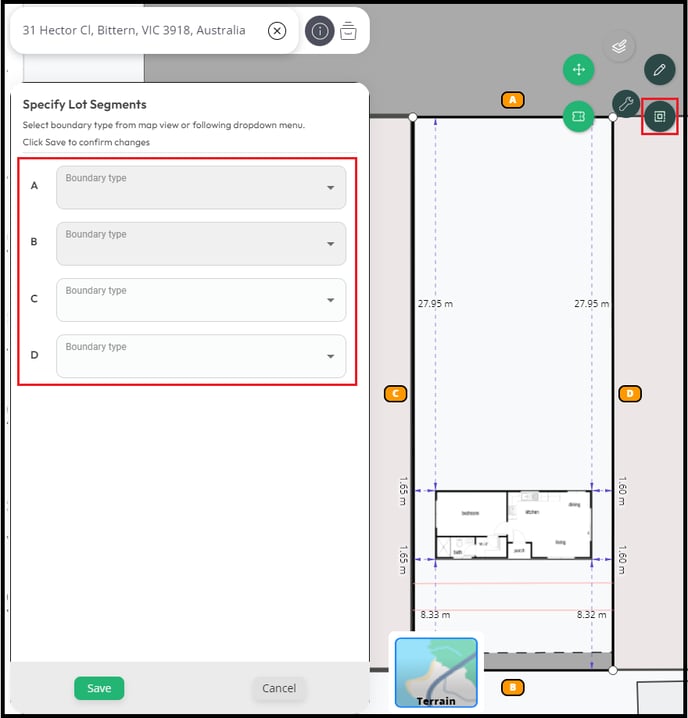

- Select Edit Segment Type.
- Identify Front, Side & Rear.
- Click the Spanner / Wrench to lock the boundary.
